CNC Machining
Carbon Fiber CNC Machining Services
CNC machining of carbon fiber sheet into profiles, plates, brackets, and other drawing-defined components.
Approach
Drawing-Based Manufacturing
Custom projects start with a customer drawing or an approved sample. For drawing-based enquiries, send a STEP, DXF, PDF, or other available file with the material, thickness, quantity, and project requirements.
We review the drawing and confirm the material, machining features, and quantity before production.
Supported Processes
- CNC Cutting
- Drilling
- Countersinking
- Counterbore
- Slotting
- Chamfering
- Engraving
- Tapping — where applicable
- Machining on Both Faces
- Screen Printing — where applicable
- Lettering / Marking — where applicable
Capabilities
Machining Processes
Drawing-defined cutting, holes, recesses, slots, edge features, and machining on both faces. Tapping and printed or engraved markings are reviewed for the part.
CNC Cutting
CNC profile cutting of carbon fiber sheet to drawing-defined outlines and dimensions.
Drilling
Holes machined to the positions and sizes specified in your drawing.
Countersinking
Conical recesses for flat-head fasteners, machined to the drawing.
Counterbore
Flat-bottomed recessed holes machined to the dimensions specified in your drawing.
Slotting
Slots and elongated openings machined to specified dimensions and positions.
Chamfering
Edge chamfers machined where specified in the drawing.
Engraving
Part numbers, text, or logos engraved where specified in the drawing.
Tapping — where applicable
Tapped holes reviewed for the material, thickness, and part design.

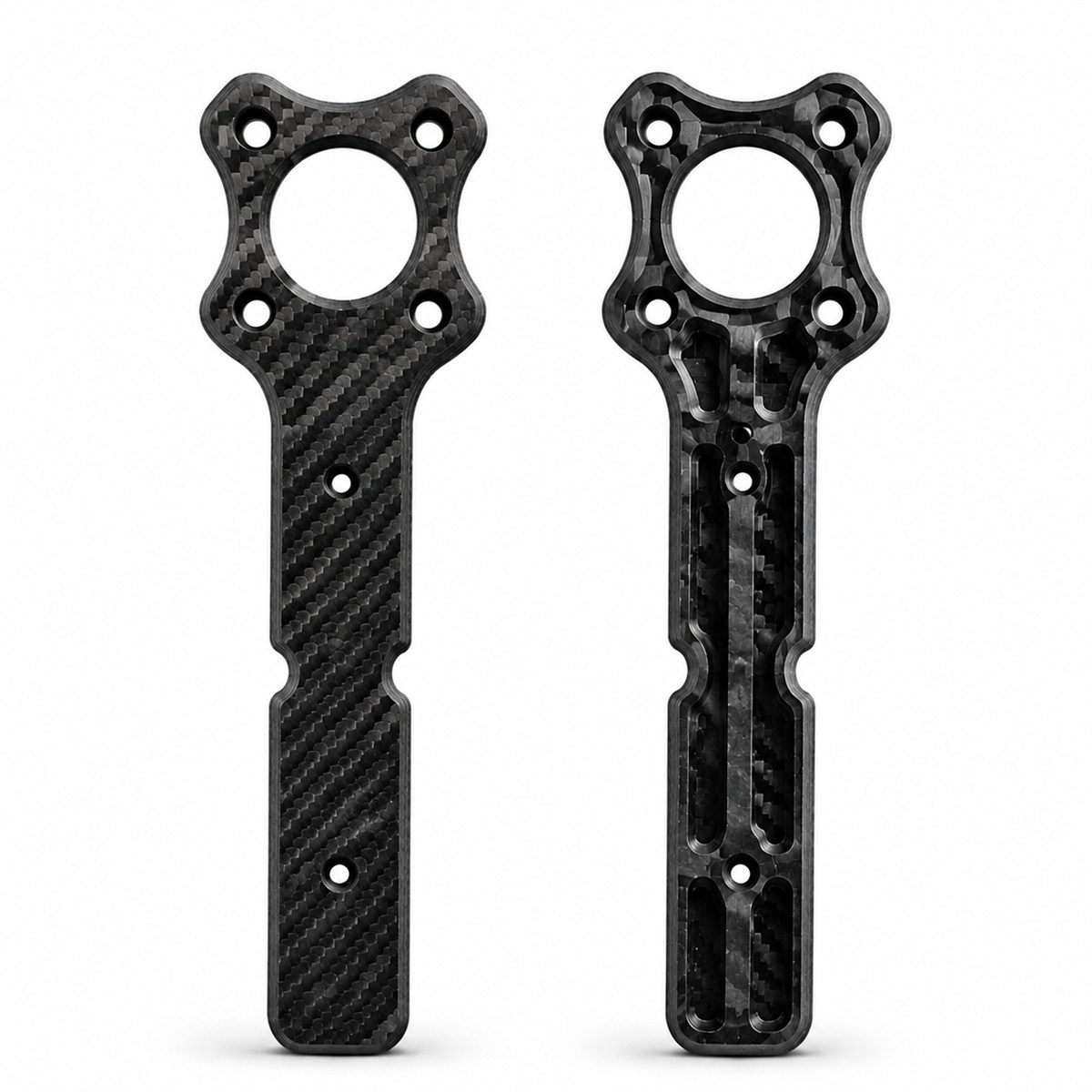

Machining on Both Faces
Machining on both faces where the specified geometry requires it.
Screen Printing — where applicable
Printed text, labels, or reference marks applied where specified.
Lettering / Marking — where applicable
Text, part numbers, or identification marks applied as specified in the drawing.
Machining Examples
Machining Feature Examples
The examples below show countersunk, counterbored, and pocket-machined features in carbon fiber parts.

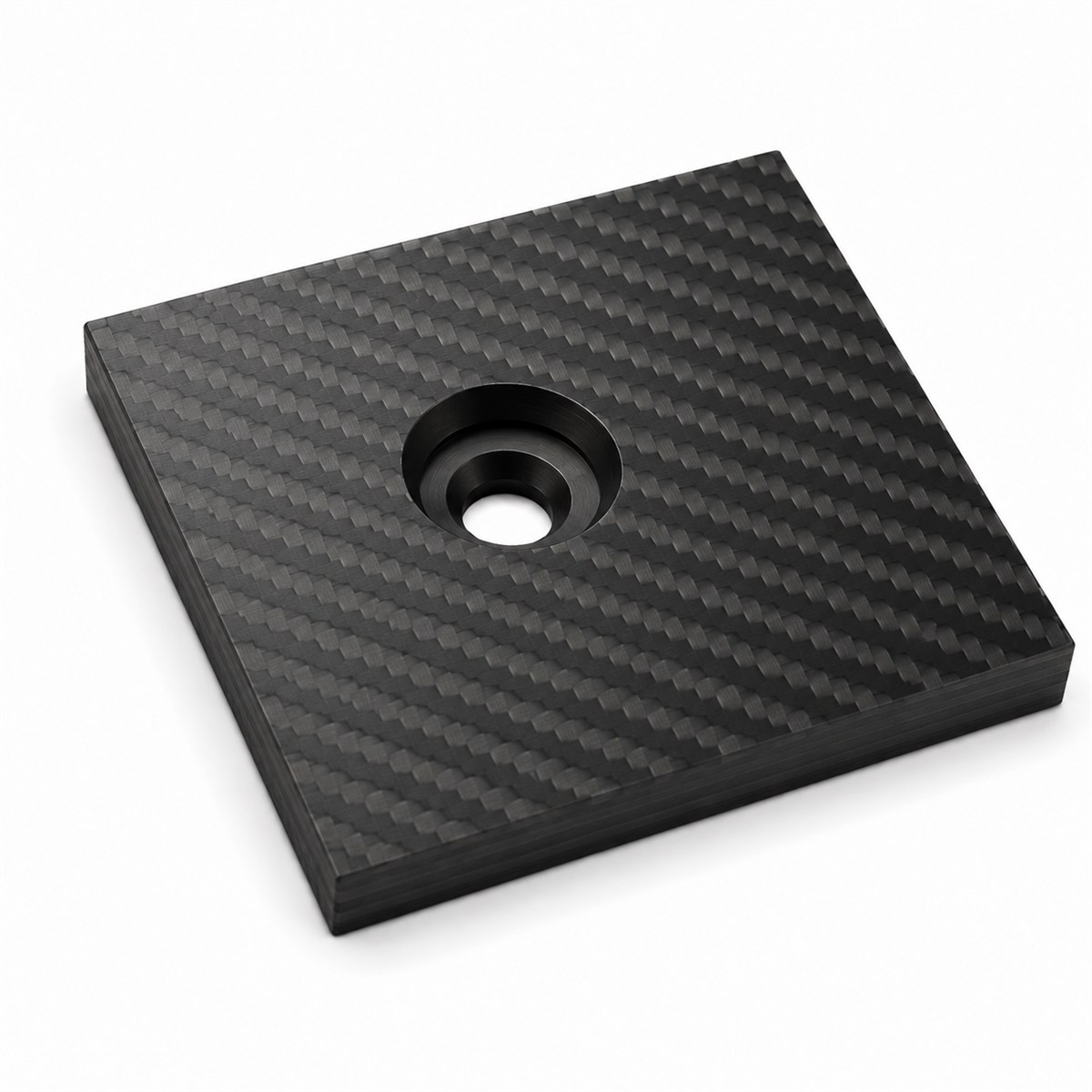

Countersinking
Conical countersunk hole in carbon fiber plate

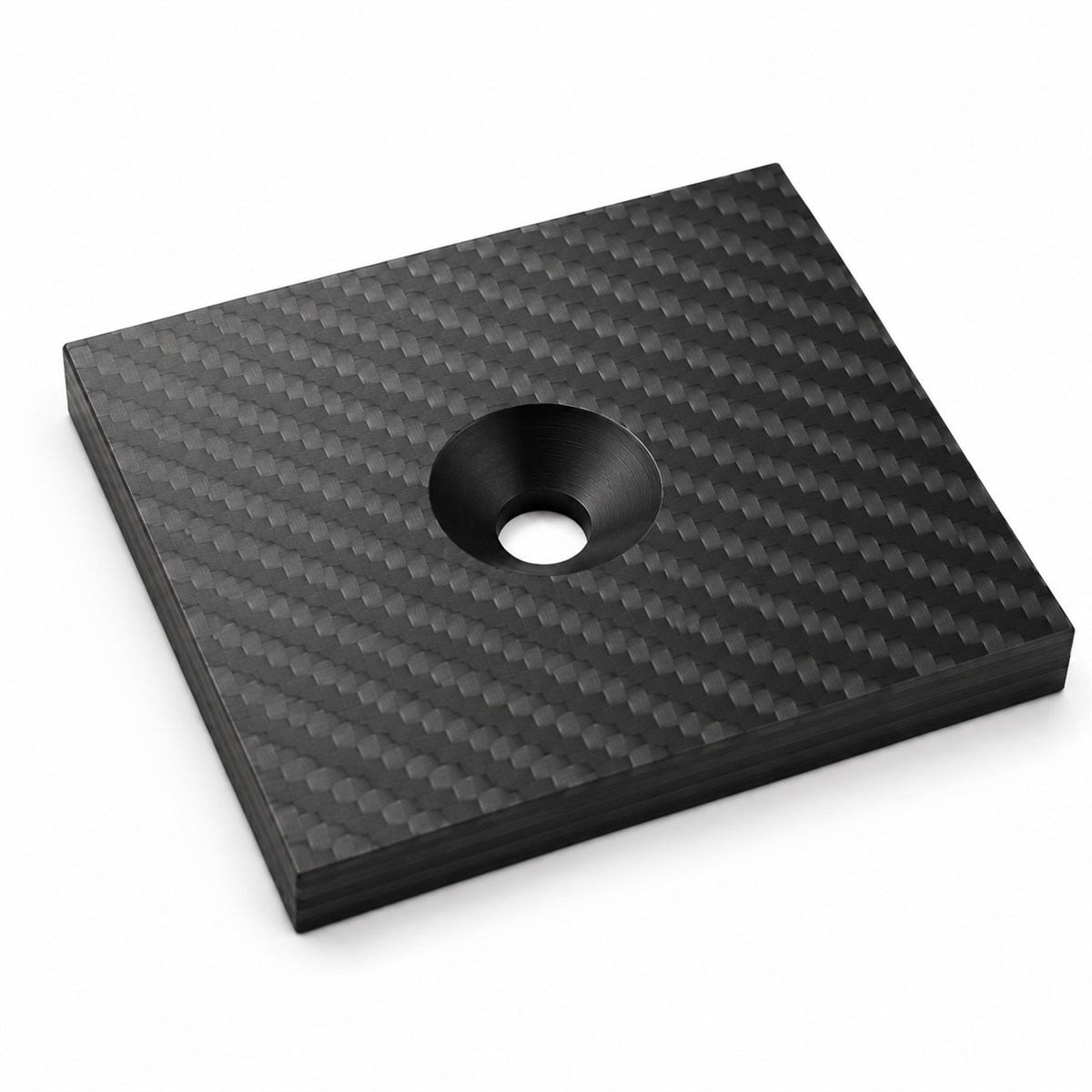

Counterbore
Recessed (counterbore) hole in carbon fiber plate
Machined Pockets
Recessed pockets machined in a carbon fiber component
Tolerance & Accuracy
Send the required tolerances with your drawing. We review them against the part geometry, thickness, and machining features before confirming what is achievable.
FAQ
CNC Machining Questions
Share Your Drawing for Review
Send your drawing, material, thickness, quantity, and required machining features for review.
