Drawing-based carbon fiber manufacturing

Custom Carbon Fiber Parts & CNC Machining

CNC-machined sheets, plates, brackets, and drawing-defined components for prototypes and small-batch production.

Upload Drawing for QuoteView CNC Capabilities
  • Made from customer drawings
  • Prototype and small-batch support
  • Material and machining review before production
Drawing-defined part

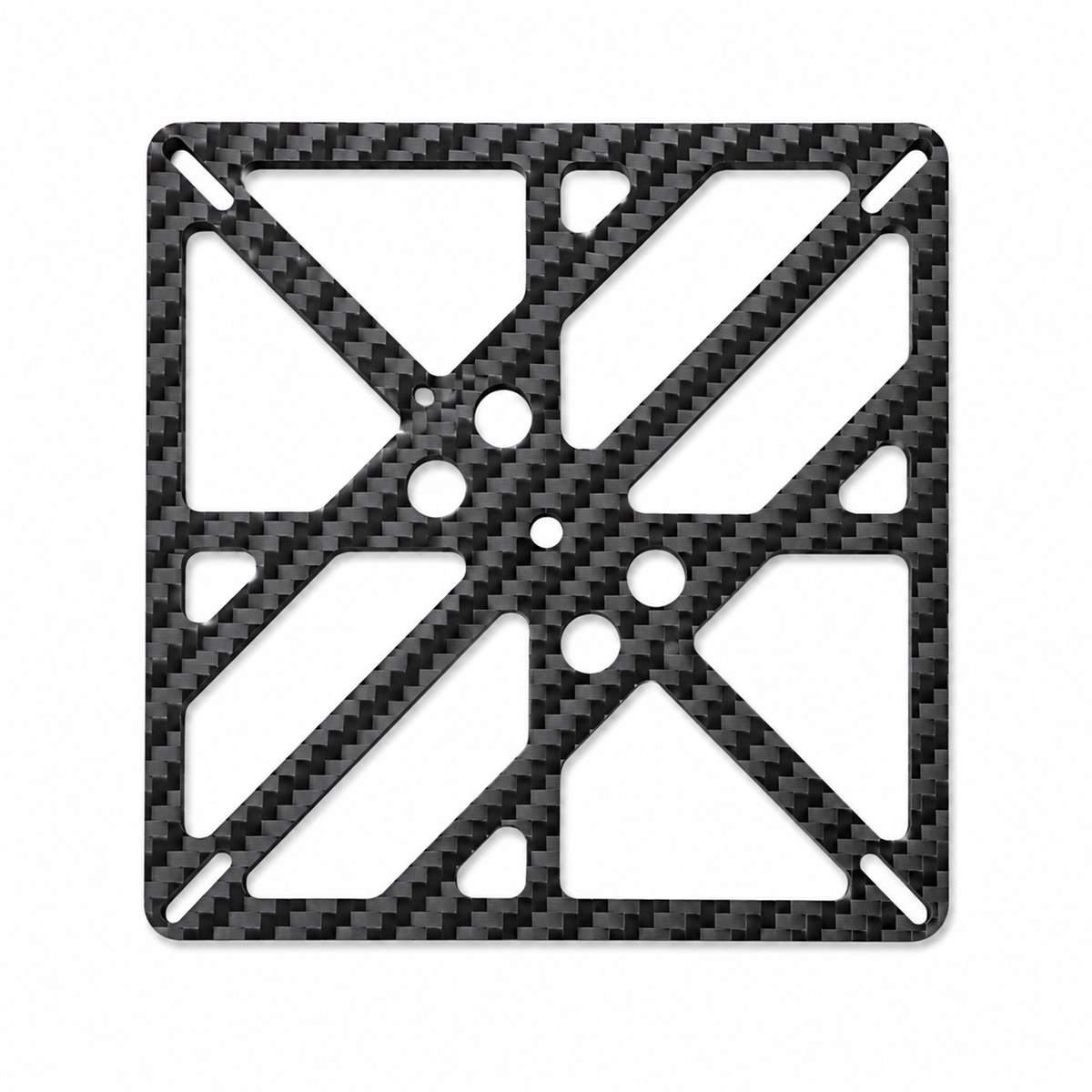

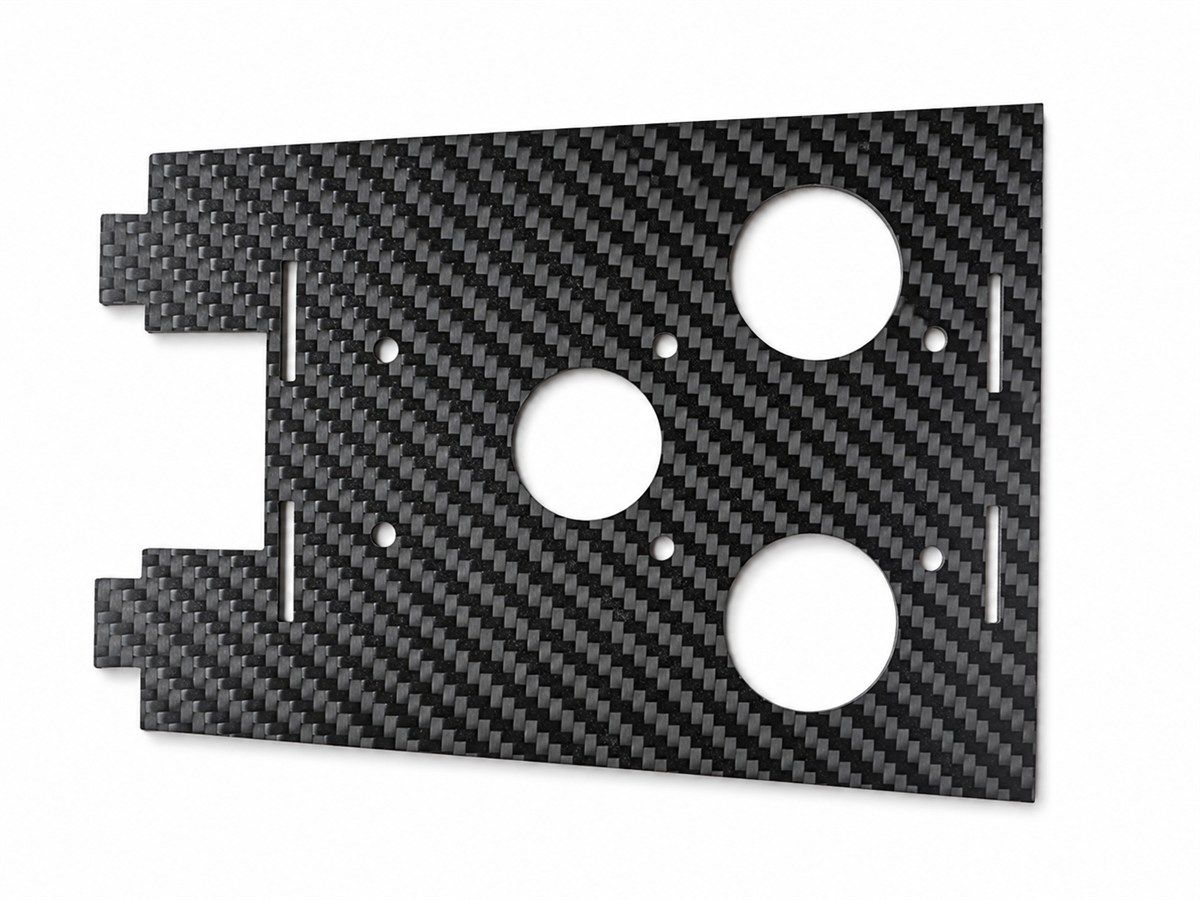

CNC-machined carbon fiber plate with multiple holes, slots, and an irregular outer profile

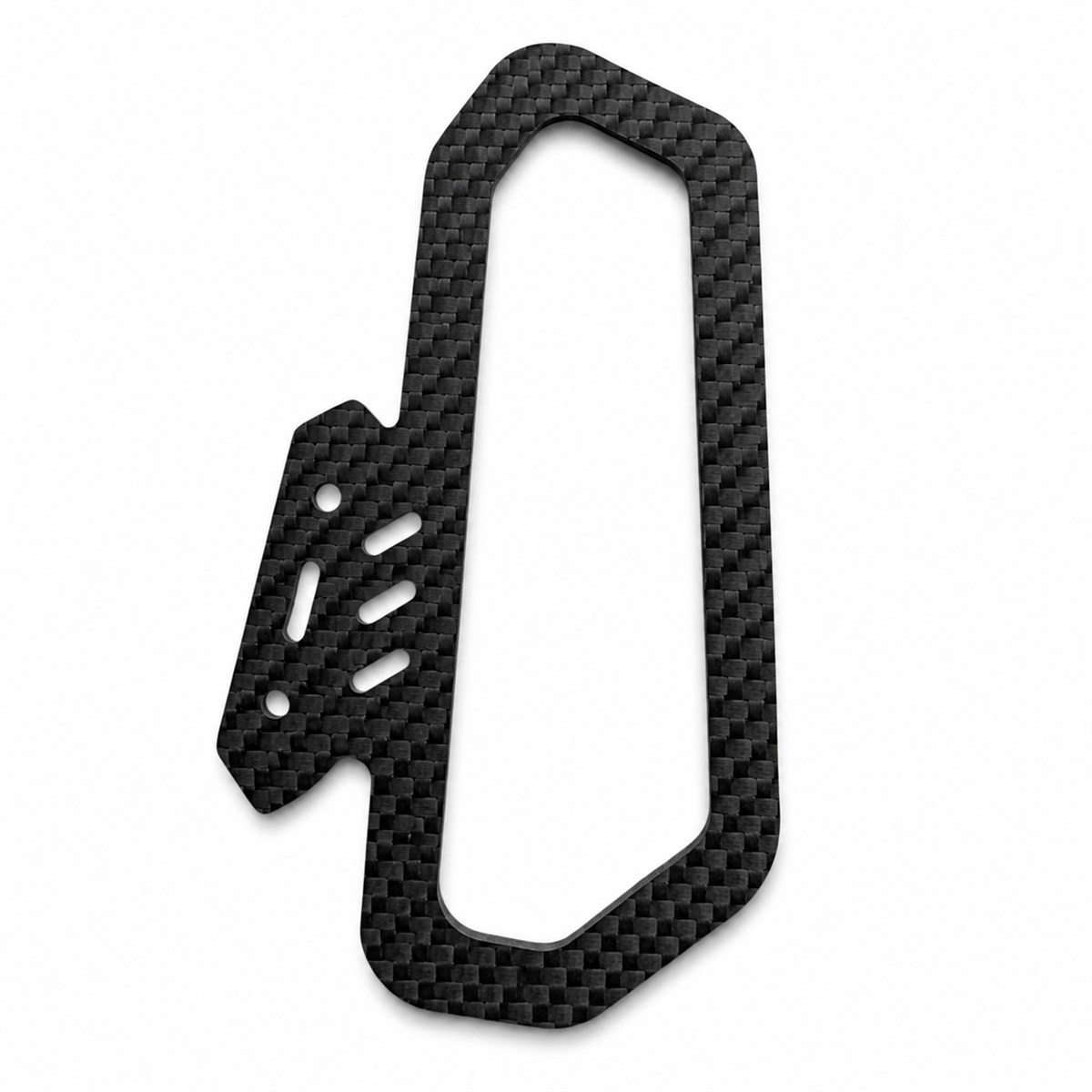

Open-frame carbon fiber bracket with machined holes and slots
Six round carbon fiber parts with machined slots
0.2–20 mm
Sheet thickness
1000 × 2000 mm
Maximum machining size
T300 / T700
Material options
STEP / DXF / DWG / PDF
Drawing files
Prototype & Small Batch
Production support

Part capability

Custom Carbon Fiber Parts

From mounting plates and brackets to slotted parts and irregular profiles, each component is reviewed against its drawing and project requirements.

View Products

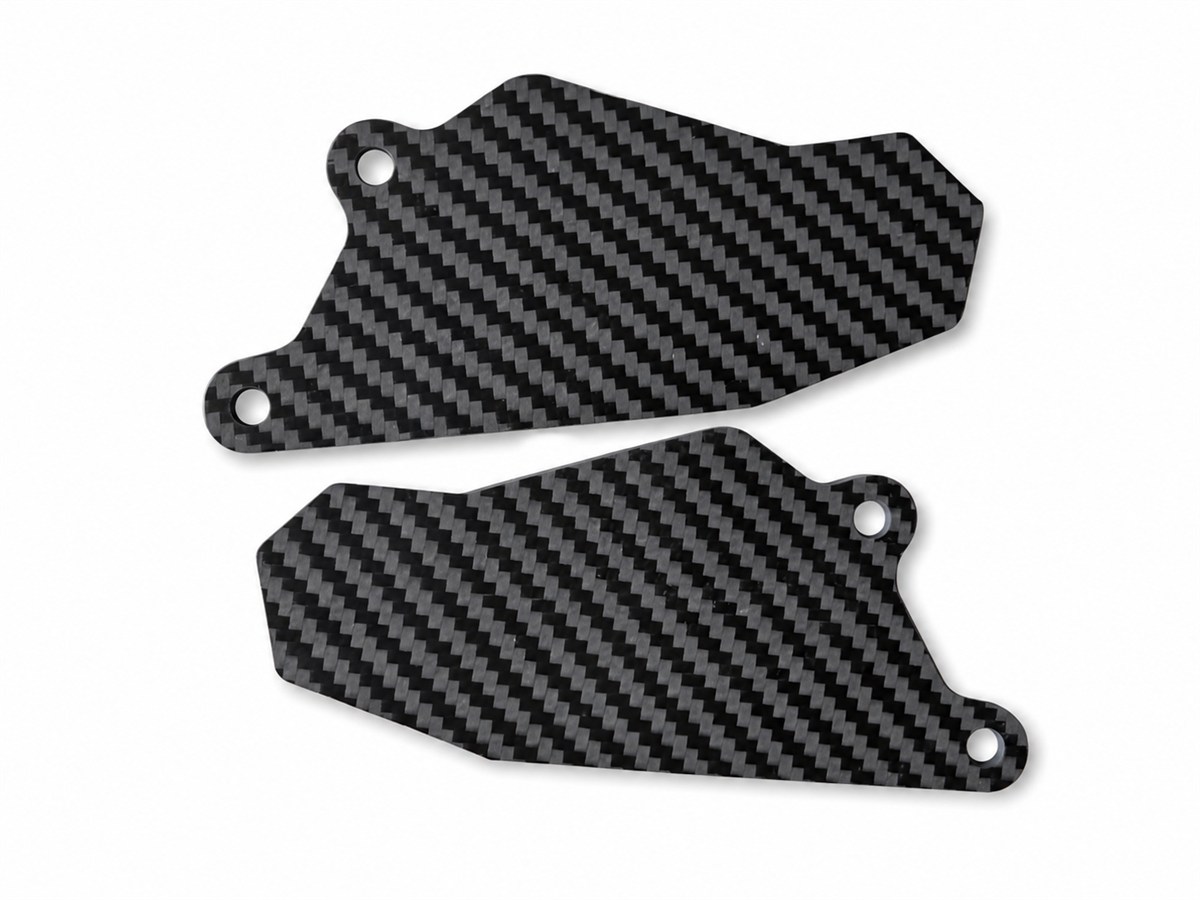

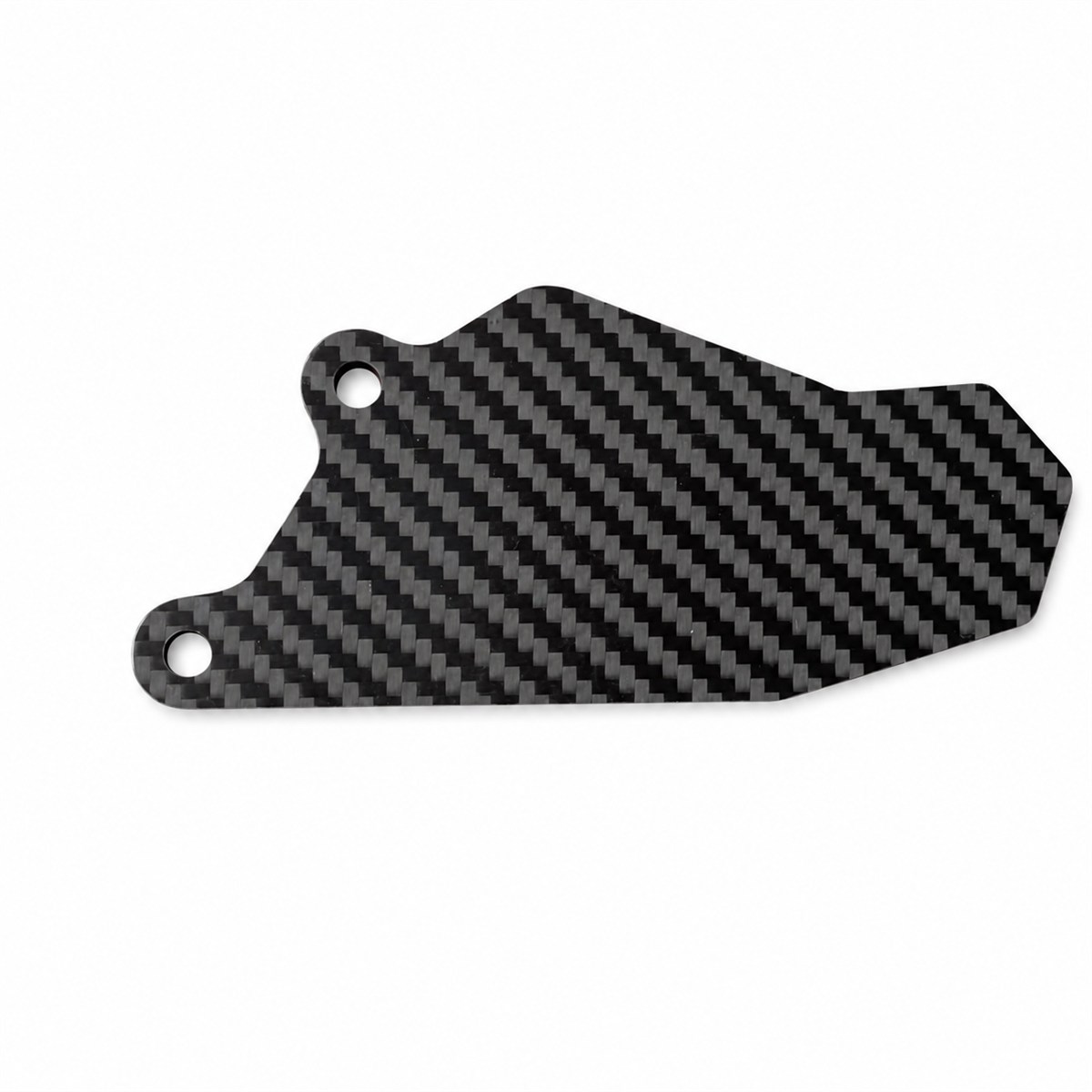

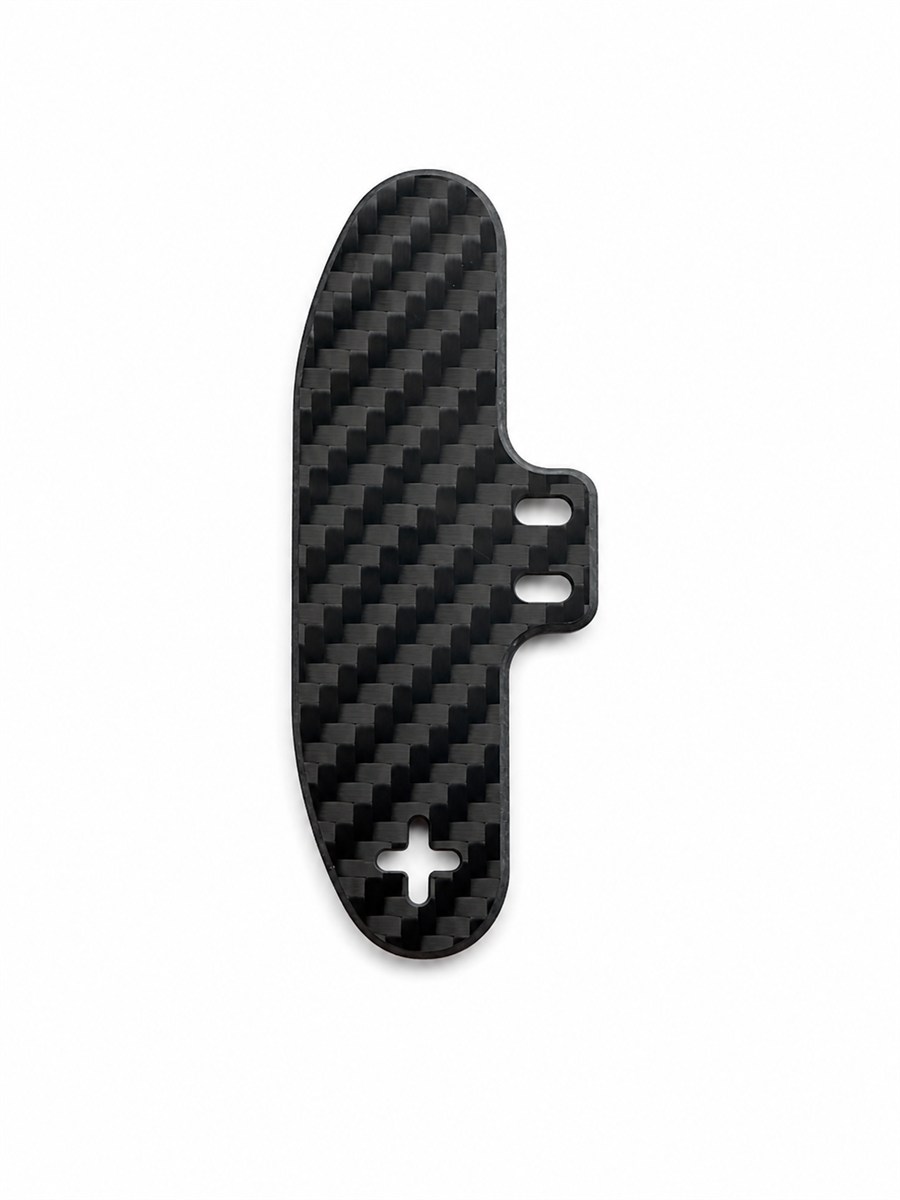

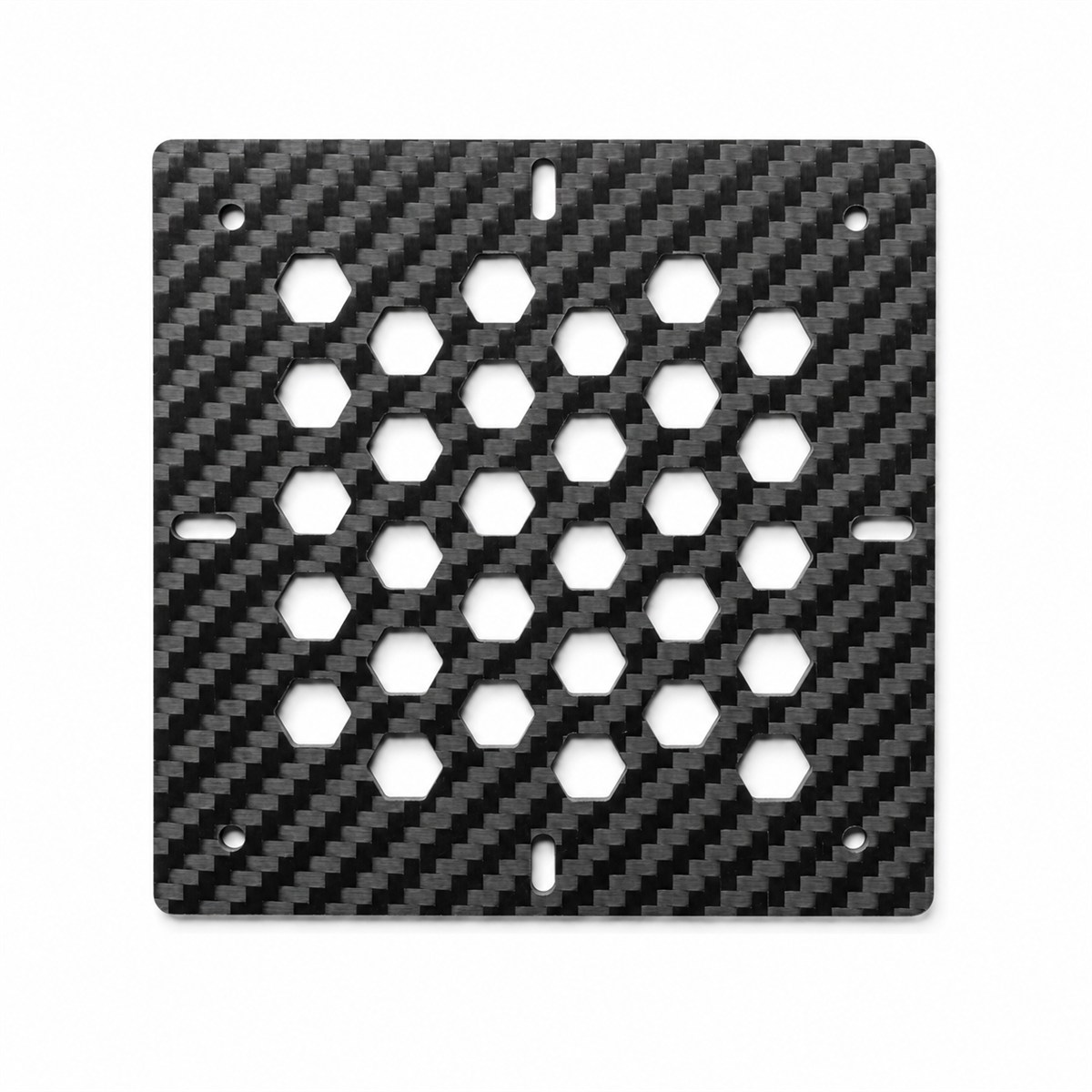

Pair of mirrored carbon fiber components with machined openings
Drawing-defined CNC components
Pair of tapered carbon fiber plates with machined mounting holes
Irregular profiles

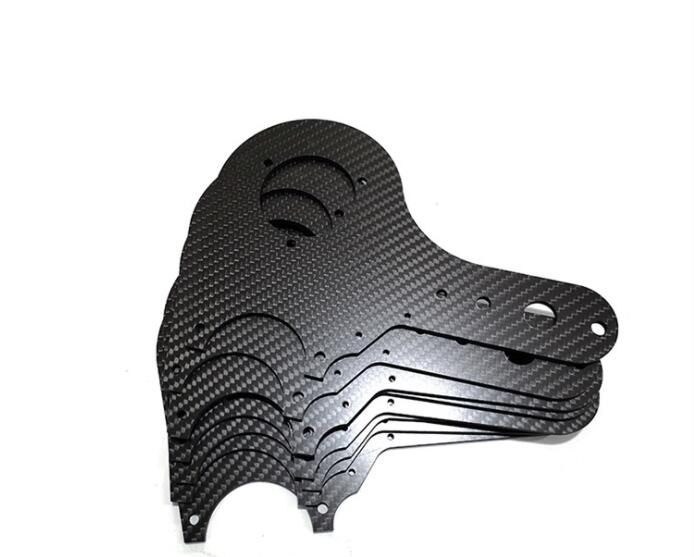

Stack of curved carbon fiber plates with machined openings
Brackets
Four carbon fiber gaskets with external locating tabs
Carbon Fiber Gasket

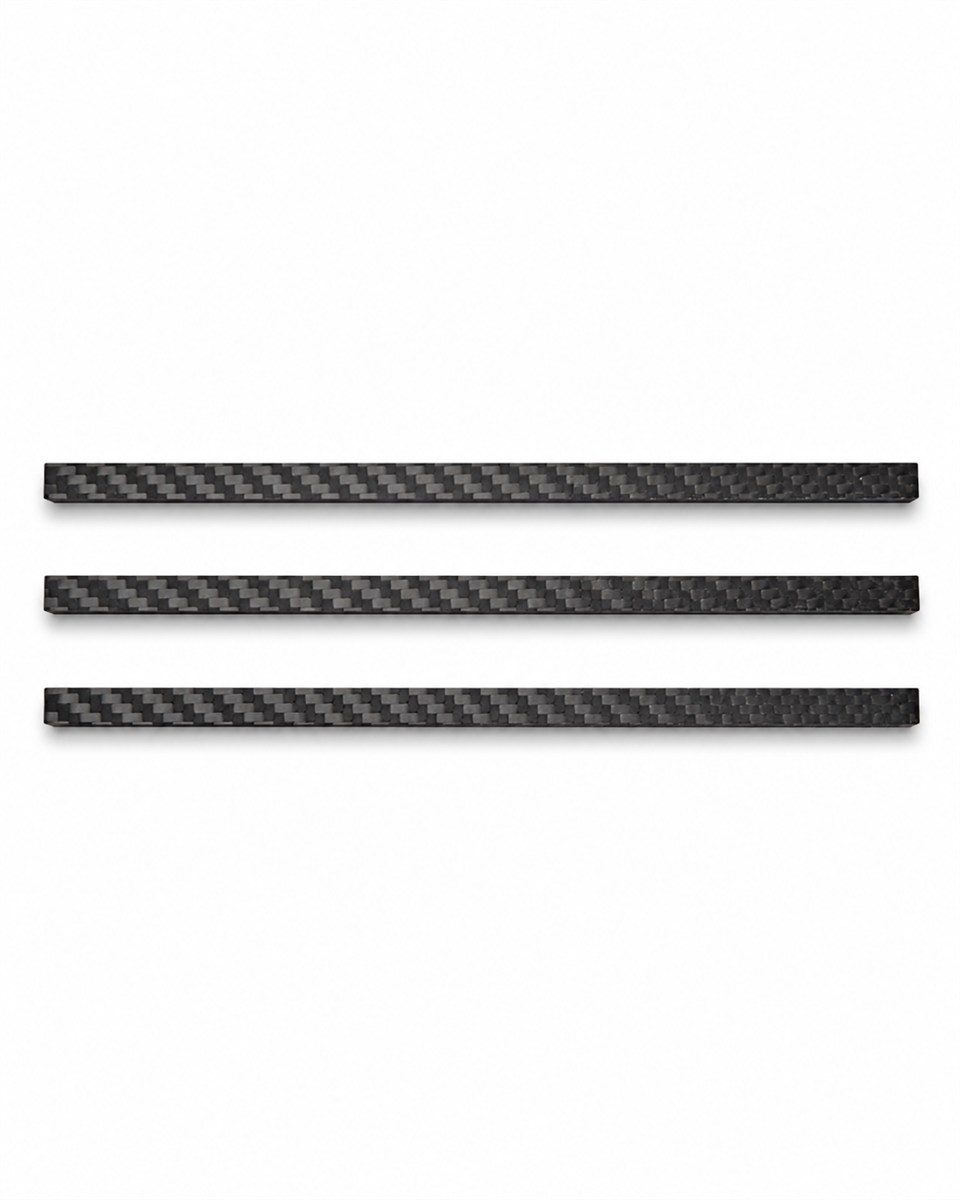

Three narrow carbon fiber strips
Cut components

Machining

CNC Machining Capabilities

Core operations for carbon fiber sheet and drawing-defined parts, supported by additional finishing and marking processes where the design permits.

Explore CNC Capabilities

CNC Cutting

Profiles and external contours cut from carbon fiber sheet to the drawing.

Drilling

Hole positions and diameters reviewed against the part geometry.

Countersinking

Conical recesses machined where flat-head fasteners are specified.

Slotting

Elongated openings and slots machined to drawing-defined locations.

Counterbore
Chamfering
Tapping
Engraving
Double-Sided Machining
Lettering / Marking

Drawing review

From CAD to Finished Part

Send a drawing or approved sample. We review the material, machining features, quantity, and project requirements before production.

CAD modelFinished part
Send Your Drawing
Carbon fiber part held in front of its matching CAD model
Matching CAD model and finished carbon fiber part

Material selection

Materials & Specifications

Material grade is selected from the specification or confirmed during review. The images below show visible thickness, weave, and finish—not material grade.

View Material Options
Five carbon fiber sheets arranged to show visibly different edge thicknesses
Sheet thickness optionsMultiple laminate thicknesses
Stack of glossy carbon fiber sheets with diagonal twill weave visible
3K twillGlossy surface example
Carbon fiber sheets with plain weave surfaces and layered edges
3K plain weaveSurface and edge detail
Material
T300 / T700
Weave
3K Twill / 3K Plain
Finish
Matte / Glossy
Thickness
0.2–20 mm
Maximum size
1000 × 2000 mm
CNC spindle drilling a repeated hole pattern in a carbon fiber sheetCNC drilling in progress
Real drilling process

Machining in production

Real Machining, Clearly Identified

KABAI coordinates carbon fiber and CNC machining projects with experienced manufacturing partners in China. The photo shows tool engagement on carbon fiber sheet during production.

  • Tool engagement visible
  • Carbon fiber sheet on the machine bed
  • Repeated hole pattern in production
View Manufacturing Process
Dial caliper checking the edge thickness of stacked sheet material during production
Dimensional check during production

Dimensional checks

Inspection & Drawing Review

Inspection requirements are confirmed from the part geometry, drawing, and project requirements before production. The photo shows a dimensional check during production.

Typical applications

Where Custom Carbon Fiber Parts Are Used

Examples of application areas for drawing-defined panels, brackets, frames, and lightweight structural components.

Explore applications
Industrial Equipment
Robotics
UAV & Drone
Automotive
Electronics
Sports Equipment

Start an RFQ

Send Us Your Drawing

Share the part requirements and we will review the material, machining features, and quantity before preparing a quotation.

  • Drawing
  • Material
  • Thickness
  • Quantity
  • Required features
Upload Drawing for QuoteView Products

Supported drawing files: STEP · STP · DXF · DWG · PDF · JPG · JPEG · PNG. ZIP files are not currently supported.
